特點：

　　PLC控制，無級變頻調速。

　　放倦、安瓶成型、灌裝、封尾、打批號、切尾、分切等22個工位由程序控制，連續自動完成。

　　人機界面裝置，操作簡單明了。

　　灌裝頭不滴漏，不起泡沫，不溢出。

　　采用優質不銹鋼材料，符合GMP標準。

　　主要元器件均采用進口。

　　適用范圍：

　　液態藥品、保健品、食品、化妝品及其它工業領域類似產品的包裝。

　　技術參數：

　　最大成型深度：10mm

　　沖裁次數：≥10-18次/分

　　包裝效率：10-18次/分 8-15支/板

　　板塊尺寸：長度315mm（最大） 寬度78-108mm（最大）

　　包裝材料：PVC/PE0.3×345mm

　　灌裝容量：5-25ml/支 0.3×345mm

　　耗氣量：110L/min

　　耗水量：6L/min

　　電源總功率：12KW

　　電壓：380V/50Hz

　　外形尺寸（長×寬×高）：3870×1780×1850

　　重量（公斤）：3400

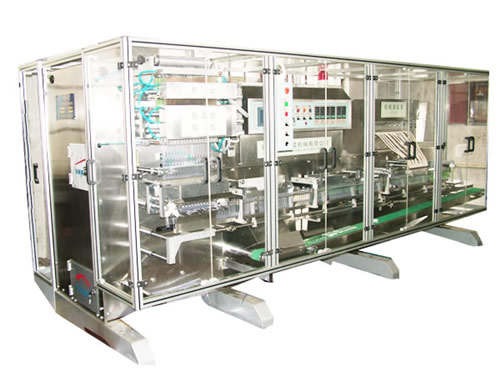

DSP-I Plastic AMP Filling & Sealing Packing Machine

　　Features:

　　PLC control, frequency variation and stepless speed

　　22 positions are controlled by procedures and continuously finished by automatically including spreading rolls, AMP bottle forming, filling and packaging, sealing the end, printing batch numbers, cutting the end, and cutting by parts.

　　Human-machine interface device helps convenient operation.

　　No dropping, leaking, bubbling and overflowing of the filling head.

　　Adopt high-quality stainless steel materials, which accords with GMP standard.

　　Main components are imported.

　　Application scope:

　　Applicable to packaging liquid medicine, health care products, food, cosmetics and similar other industrial products

　　Specifications:

　　1.Max forming depth: 10mm

　　2.Cutting frequency: ≥10-18 times/Min

　　3.Packaging efficiency: 10-18 times/Min 8-15 bottles/plate

　　4.Plate dimension: length 315mm（Max） width 78-108mm（Max）

　　5.Wrapper: PVC/PE0.3×345mm

　　6.Filling & packaging capacity: 5-25ml/bottle 0.3×345mm

　　7.Air consumption: 110L/min

　　8.Water consumption: 6L/min

　　9.Total power supply: 12KW

　　10.Voltage: 380V/50Hz

　　11.Dimension (Length × Width × Height): 3870×1780×1850

　　12.Weight (Kg): 3400
